VEDON X6336 is a universal radial milling machine that offers a combination of vertical and horizontal milling capabilities.

• Universal Design (Vertical and Horizontal Milling):

  • A significant advantage is the ability to perform both vertical and horizontal milling operations on a single machine. This eliminates the need for separate machines, saving space and cost.

  • The milling head can be adjusted for both vertical and horizontal orientations, providing versatility for various machining tasks.

• Radial Arm:

  • The radial arm provides increased flexibility, allowing the milling head to be positioned over a wider working area.

  • This is particularly useful for machining large or irregularly shaped workpieces.

• Rigid Construction:

  • The machines are built with robust materials, typically cast iron, to minimize vibrations during cutting. This contributes to improved accuracy and surface finish.

• Variable Spindle Speeds:

  • A range of spindle speeds allows for optimizing cutting parameters for different materials and cutting tools.

• Power Feed:

  • Many versions of this machine, have power feed on the axis, and some have a motorized z axis lift, this increases ease of use.

• Versatility:

  • These machines can perform a wide range of milling operations, including:

    • Face milling

    • End milling

    • Slotting

    • Drilling

    • Angular milling

Key Features and Benefits

Applications

The VEDON X6336 is suitable for a variety of applications, including:

• Tool and Die Making: Creating molds, dies, and fixtures.

• General Manufacturing: Machining various components.

• Job Shops: Handling diverse machining tasks.

• Repair and Maintenance: Performing repairs and modifications.

Why Choose the VEDON X6336 Universal Radial Milling Machine

• Versatility: The ability to perform both vertical and horizontal milling operations.

• Flexibility: The radial arm design provides increased flexibility.

• Durability: Robust construction ensures longevity.

• Cost-Effectiveness: Combining vertical and horizontal milling in a single machine can be cost-effective.

By partnering with VEDON Machineries India, you gain access to advanced technology, expert support, and a reliable partner dedicated to your success.

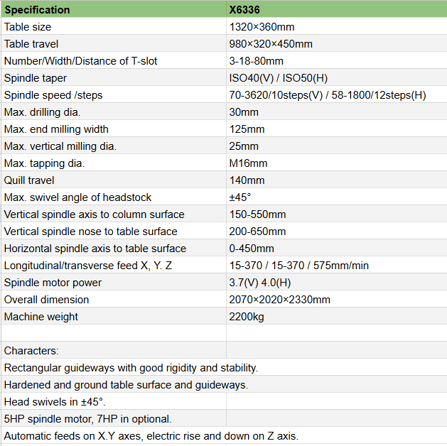

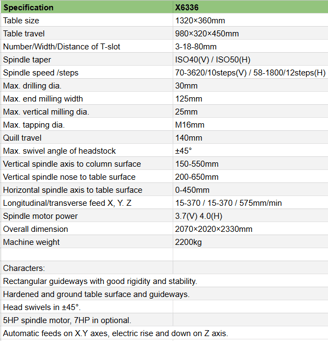

Specification
