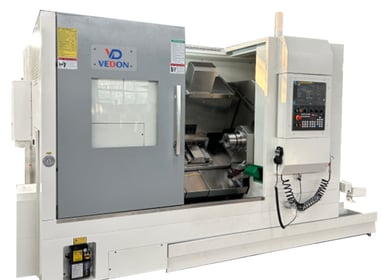

The VEDON TCK52DYS is a slant bed CNC turning center with double spindles, a BMT55 (presumably a specific type of turret interface), and a 12-station live turret. This machine is designed for high-volume, high-precision machining of complex parts, offering significant productivity advantages.

• Slant Bed Design: Provides exceptional rigidity and stability, crucial for high-precision machining and heavy cutting. Also facilitates chip flow and minimizes thermal distortion.

• Double Spindles: This is a major productivity enhancer. Having two spindles allows for simultaneous machining of two parts or for performing different operations on the same part concurrently. This significantly reduces cycle times.

• CNC Control: Computer Numerical Control enables automated, precise, and repeatable machining operations. This leads to increased productivity, consistent part quality, and reduced scrap.

• 12-Station Live Turret: This turret not only holds 12 cutting tools for turning operations but also incorporates live tooling capability. Live tooling allows for milling, drilling, and tapping operations on the lathe itself, further expanding the machine's capabilities and reducing the need for secondary operations.

• BMT55 Turret Interface: BMT (Base Mounted Turret) likely refers to a specific type of interface between the turret and the machine. BMT turrets are known for their rigidity and precision, which is important for live tooling operations. You should confirm the exact specifications and advantages of the BMT55 interface with the manufacturer.

• Y-Axis (Likely): A "DYS" designation often implies the inclusion of a Y-axis, which provides movement perpendicular to the spindle axis. This enables off-center machining, complex contouring, and more versatile milling operations. Confirm this feature with the manufacturer.

• High Precision: These machines are built for high accuracy and repeatability.

• Powerful Spindles: Robust spindle motors provide the power needed for both turning and live tooling operations on both spindles.

• Rigid Construction: The machine's robust frame and components minimize vibrations during cutting, essential for good surface finishes and dimensional accuracy.

• Automatic Lubrication System: Ensures proper lubrication, reducing wear and tear.

• Coolant System: Helps dissipate heat and improve cutting performance.

Key Features and Benefits

Applications

The VEDON TCK52DYS is ideal for high-volume production of complex parts in industries such as:

• Automotive: Producing complex engine, transmission, and chassis components.

• Aerospace: Manufacturing complex parts requiring both turning and milling.

• Hydraulics: Machining complex valve bodies and other hydraulic components.

• Medical Devices: Creating intricate medical implants and instruments.

• Any industry requiring high-volume production of complex parts.

Why Choose the VEDON TCK52DYS Slant Bed Cnc Turning Center Double Spindle BMT55 12 Station Live Turret

• Maximum Productivity: The dual spindles, live turret, and Y-axis significantly increase throughput and reduce cycle times.

• Exceptional Versatility: The combination of turning, milling, drilling, and tapping capabilities in a single machine maximizes versatility.

• High Accuracy: Designed for high precision and repeatability.

• Reduced Setup Times: The live turret and Y-axis minimize setup changes.

• Reduced Labor Costs: Automation and increased efficiency can lead to lower labor costs per part.

By partnering with VEDON Machineries India, you gain access to advanced technology, expert support, and a reliable partner dedicated to your success.

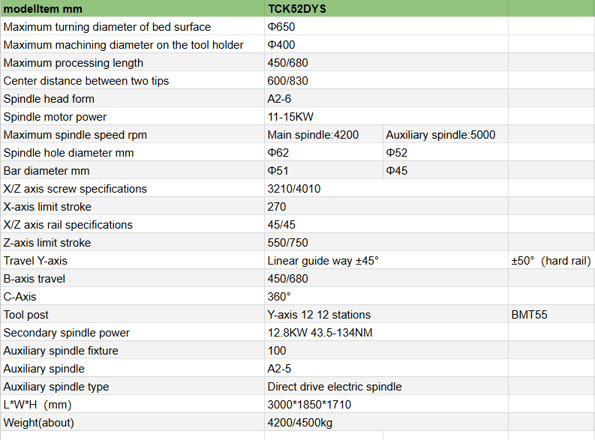

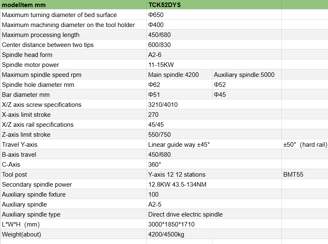

Specification
