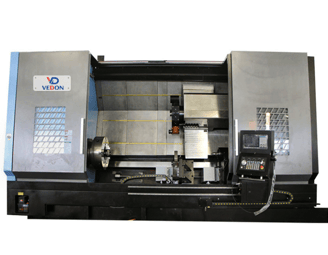

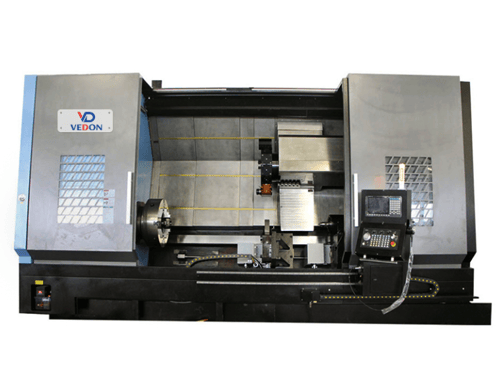

The VEDON TCK1100 is a slant bed CNC lathe turning machine, typically equipped with a 12-station servo or hydraulic turret. This machine is designed for heavy-duty, high-precision, and efficient machining of large and complex parts.

• Slant Bed Design: The slant bed configuration is crucial for rigidity and stability. It provides a solid foundation for heavy cutting and high-precision machining. The angled bed also facilitates chip flow and minimizes thermal distortion, leading to better part quality.

• CNC Control: Computer Numerical Control (CNC) enables automated and precise machining operations. Once a program is loaded, the machine executes the steps with minimal operator intervention, resulting in increased productivity, consistent part quality, and reduced scrap.

• 12-Station Turret (Servo/Hydraulic): The 12-station turret offers exceptional tooling flexibility, accommodating a wide range of cutting tools for complex machining operations. Whether it's servo or hydraulic, the turret provides fast, accurate, and reliable tool changes. Servo turrets are generally faster, while hydraulic turrets can handle heavier tooling and cutting forces. You'll want to confirm which type is on the specific machine you are considering.

• Large Swing Over Bed: The TCK1100 is designed for larger diameter workpieces, as indicated by its model number. This "swing" refers to the largest diameter that can be turned.

• Powerful Spindle: A high-power spindle motor provides the necessary torque for machining large and tough workpieces made of various materials, including difficult-to-machine alloys.

• Heavy-Duty Construction: The machine's robust frame, bed, and components are designed to withstand the rigors of heavy cutting and maintain accuracy over extended periods. This is essential for machining large, heavy parts.

• Automatic Lubrication System: An automatic lubrication system ensures proper lubrication of critical components, reducing wear and tear and prolonging the machine's lifespan.

• Coolant System: A coolant system helps dissipate heat and improve cutting performance, particularly when working with hard materials or performing heavy cuts. This is vital for tool life and surface finish.

Key Features and Benefits

Applications

The VEDON TCK1100 is ideal for machining large and complex parts in industries such as:

• Heavy Machinery Manufacturing: Producing large components for construction equipment, mining machinery, and other heavy industrial equipment.

• Aerospace: Machining large structural components, engine parts, and landing gear components.

• Shipbuilding: Manufacturing large parts for ship hulls, propulsion systems, and other shipboard equipment.

• Power Generation: Machining large components for turbines, generators, and other power generation equipment.

• Oil and Gas: Producing large parts for drilling equipment, pipelines, and other oil and gas related machinery.

Why Choose the VEDON TCK1100 Slant Bed CNC Lathe Turning Machine 12 Station Servo/Hydraulic

• Capacity for Large Parts: The large swing over bed and heavy-duty construction make it suitable for machining large and heavy workpieces.

• High Productivity: CNC control and the 12-station turret significantly increase machining efficiency and reduce cycle times.

• Exceptional Accuracy and Consistency: CNC machining ensures consistent part quality and dimensional accuracy, minimizing scrap and rework.

• High Rigidity and Stability: The slant bed design and robust construction provide exceptional rigidity, making it suitable for heavy cutting and high-precision work.

• Versatility: The 12-station turret allows for complex machining operations with minimal setup changes.

By partnering with VEDON Machineries India, you gain access to advanced technology, expert support, and a reliable partner dedicated to your success.

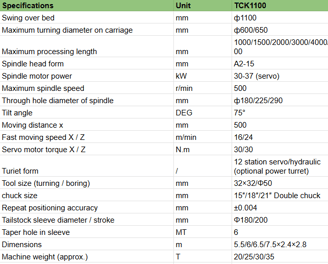

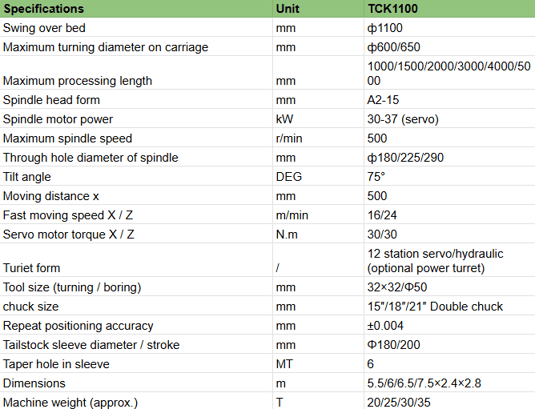

Specification
